Cinematic Rendering of Single Ventricle Congenital Heart Disease and Body-Pulmonary Collateral Circulation

© 2025 HMP Global. All Rights Reserved.
Any views and opinions expressed are those of the author(s) and/or participants and do not necessarily reflect the views, policy, or position of the Journal of Invasive Cardiology or HMP Global, their employees, and affiliates.

J INVASIVE CARDIOL 2025. doi:10.25270/jic/25.00228. Epub August 27, 2025.

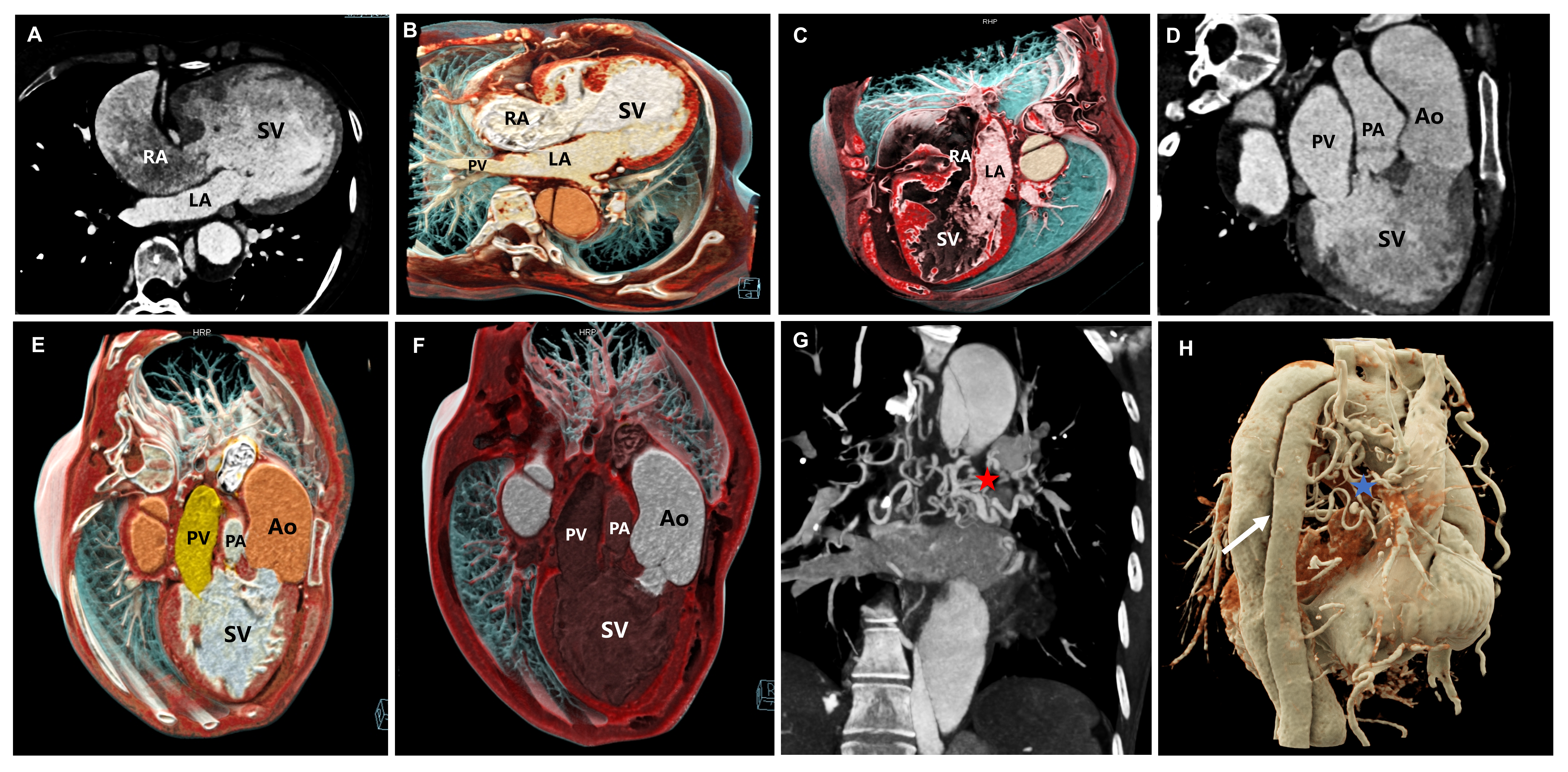

A 40-year-old woman presented to the hospital with recurrent chest pain and dyspnea. Cardiac computed tomography angiography (CCTA) and cinematic rendering showed the dual inlets of a single ventricle with the right and left atria converging into the single ventricle (Figure A-C; Videos 1 and 2). CCTA and cinematic rendering also showed dual outlets of a single ventricle with the aorta and pulmonary artery emanating from the single ventricle (Figure D-F). CCTA maximal intensity projection and cinematic rendering revealed multiple vessels of the aortic arch and descending aorta connected to the pulmonary arteries and the formation of body-pulmonary collateral circulation (Figure G-H). The patient was finally diagnosed with complex congenital heart disease (CHD) with single ventricle type A and body-pulmonary collateral circulation; she also had DeBakey type I aortic dissection. The patient and her family refused further treatment.

Single-ventricle congenital heart disease is a rare and complex congenital heart malformation that accounts for approximately 1% to 2% of CHD cases.^1,2 In patients with single-ventricle CHD, blood from the body circulation mixes with the pulmonary circulation in the ventricles, resulting in single-ventricle blood-volume overload and early onset of heart failure. Surgery is the primary treatment for patients with single-ventricle CHD.³ Cinematic rendering based on CCTA not only accurately diagnoses the type and size of the single ventricle, clearly shows the connection of different blood vessels to the single ventricle, and determines whether they are combined with other cardiac malformations—thus comprehensively evaluating the conditions of single ventricle—but also provides important guidance for surgical planning and prognosis assessment.
